Conductor Type
|
-
|
Conductor Section (SQmm)
|
3 up to 30 mm
|
Max. Wire Diameter (mm)
|
-
|
Max. No. of Wires (SQmm)
|
-
|
Max. Cable Diameter (mm)
|
4up to 32mm
|
Sheathing Type
|
-
|
Filing Type
|
-
|
Max. Linear Speed (m/min)
|
-
|

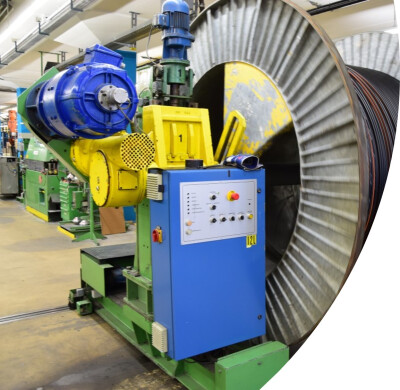

Take-up Bobbin Diameter (mm)
|
800-2000
|
Take-up Bobbin Width (mm)
|
500-1500
|
Take-up Bobbin Weight (Kg)
|
8000
|
Take-up Pinhole Diameter (mm)
|
50
|
Take-up Traversing (mm)
|
0-120
|
Take-up Max. Pulling Force (Kp)
|
320
|
Take-up Max. Rotating Speed (rpm)
|
80
|

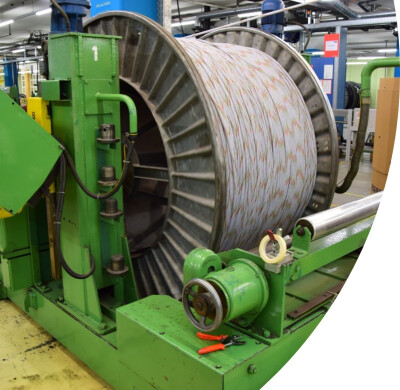

Pay-off Bobbin Diameter (mm)
|
800-2000
|
Pay-off Bobbin Width (mm)
|
500-1500
|
Pay-off Bobbin Weight (Kg)
|
8000
|
Pay-off Pinhole Diameter (mm)
|
50
|
Pay-off Traversing (mm)
|
0-120
|
Pay-off Max. Rotating Speed (rpm)
|
80
|

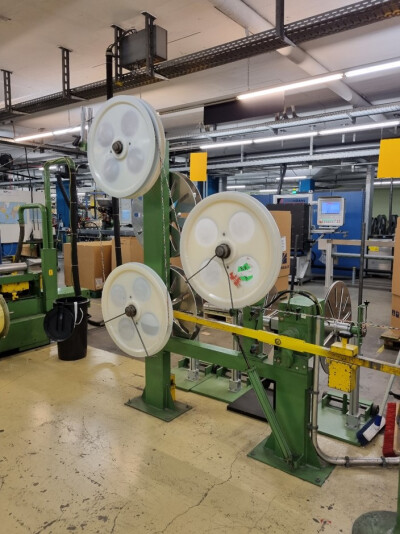

Dancer Wheels diameter (mm)
|
500
|

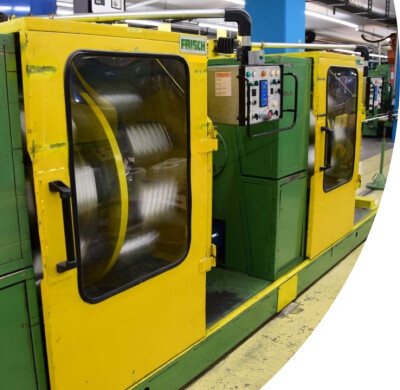

Yarn Server No. of Pads
|
18
|
Yarn Server Cable Diameter (mm)
|
2-40
|
Yarn Server Wickelsteigung (mm)
|
50-500
|
Pads Max. Diameter (mm)
|
220
|
Pads Max. Sleeve Lengths (mm)
|
290
|
Pads Bore Diameter (mm)
|
93-94
|

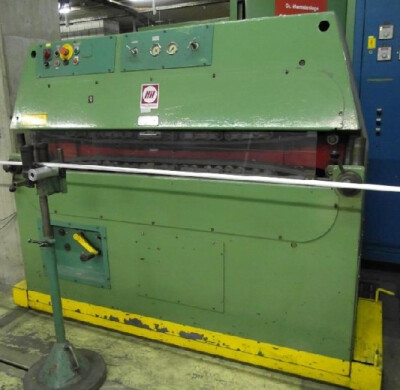

Caterpillar Pulling Force (kN)
|
400
|
Caterpillar Max. Belts Opening (mm)
|
70
|
Caterpillar Pressure (Kg)
|
1150
|

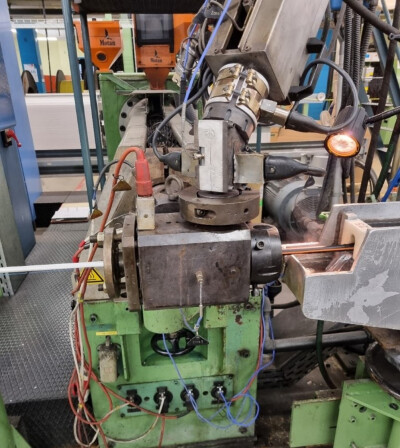

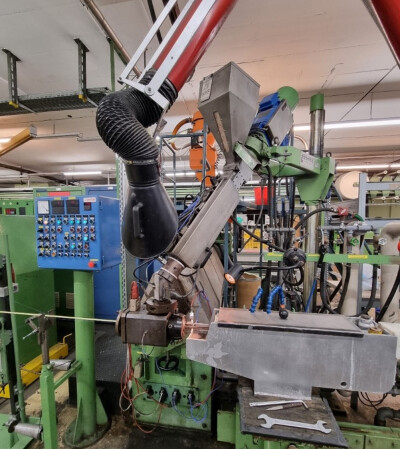

Main Extruder Ratio (L/D)
|
18
|
Main Extruder Screw Rotation Speed (rpm)
|
6-60
|
Main Extruder No. of Heating Zone (on crosshead)
|
1
|
Main Extruder No. of Fans
|
4
|
Auxiliary Extruder Screw Diameter (mm)
|
30
|
Auxiliary Extruder Ratio (L/D)
|
24
|
Auxiliary Extruder No. of Heating Zone
|
5
|
Diameter Gauge Type
|
ODAC 32 XY J
|
Diameter Gauge Controller
|
USYS 1000 A 01 b A
|
Diameter Gauge Axis Type
|
Dual Axis
|
Diameter Gauge Measurement Field (mm)
|
32x32
|
Cooling Trough Inlet Diameter (mm)
|
500
|
Cooling Through Deviation Pulleys (mm)
|
800
|
Distance between Pulleys (mm)
|
7000
|
Cooling Through Length (mm)
|
3000
|
Length Marking Unit Max. Speed (m/min)
|
100
|
Length Marking Unit Marking Wheel (m)
|
1
|
Length Marking Unit Foil Width (mm)
|
10
|
